AS 1040 YAK 4WD

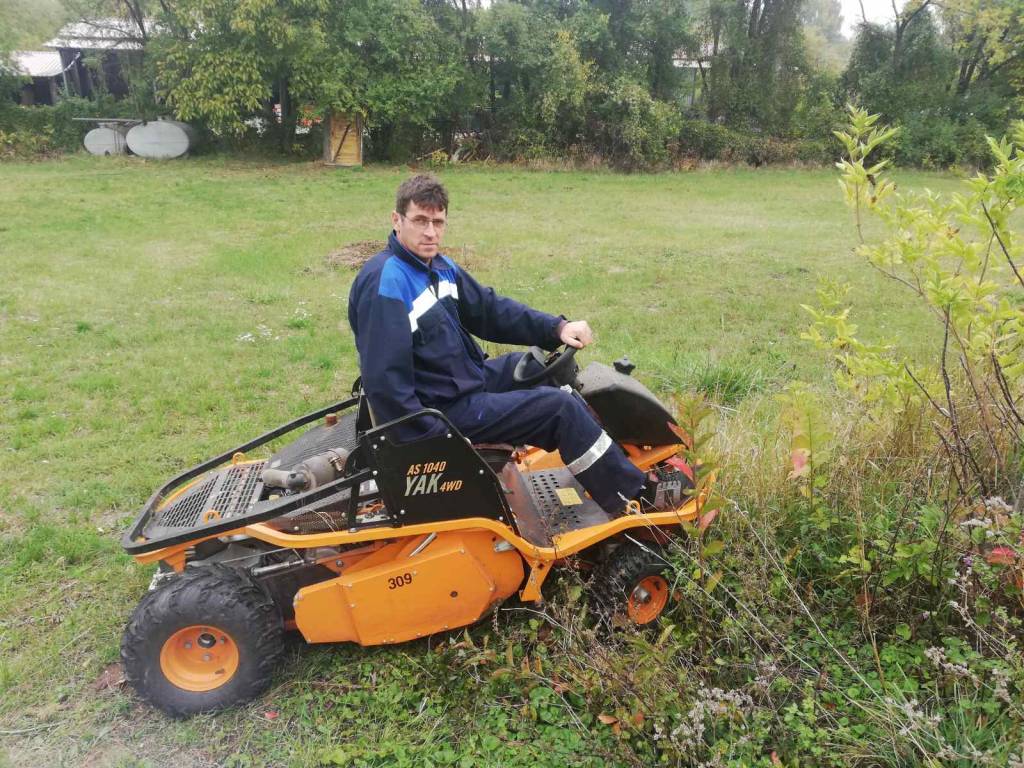

Strong, robust and at home on difficult terrain – AS 1040 Yak 4WD

AS-Motor’s new robust ride-on flail mower is engineered for uneven, rough and steep terrain. The AS 1040 Yak 4WD shreds grass up to 1.5 metres tall as well as brush and young saplings.  With high work rates and even more safety, the flail mower is an ideal tool for professional users such as commercial landscapers and municipal operators.

A powerhouse with direct flail shaft drive

The AS 1040 Yak 4WD is powered by a Briggs & Stratton 2 cylinder Vanguard V-Twin engine with up to 23 hp (17.2 kW) and 627 ccm displacement. The engine is horizontally placed and thus transfers the force directly to the flail shaft through a V-belt, while a cyclone air filter delivers fresh air supply. The engine’s oil and fuel pump guarantees performance on slopes.

Variable 4WD with cruise control function

Hydrostatic transmission allows the operator to conveniently control the AS 1040 Yak 4WD’s speed up to 6.8 km/h forward, and 6.3 km/h in reverse. Permanent 4WD delivers propulsion no matter the terrain.  The rear axle differential can be blocked at any time via a foot pedal; a drive lever with integrated parking brake and cruise control ensures easy operation.

Surfing flail mower unit with Y-flails

The AS 1040 Yak 4WD achieves work rates reaching 6,800 m²/h thanks to its 1-metre working width and 56 Y-flails that shred grass and deposit the mulch uniformly across the work area. Cutting height can be adjusted to 7 levels between 30-110 mm.  A surfing mower deck and Y-flails that give way protect the engine, and the operator, from damage in the event of unseen objects or uneven terrain.  The mower deck’s asymmetric shape allows efficient mowing close to fences and around objects.

Comfort for long work days

An ergonomic sitting position provides adequate legroom for users up to 200 cm (6’6″) tall, while the bucket seat and innovative suspension system with end position damping can be adapted to every operator.
Flail over rotary?Stable and robust asymmetrically arranged surfing flail mower unit. The mower deck and the flails themselves give way to uneven ground and foreign objects.
Uniform grass placementPerfect mowing results over the entire working width.
Made for professionalsFlail rotor drive and diminished need for path overlap guarantee high work rates.
Robust and durableStable, square-tube frame with weight-optimized design, low-maintenance hydrostatic transmission and optimal cooling.
Extremely suitable for slopesLow centre of gravity and 4WD guarantee safety on slopes.
Stable lateral positionBalanced weight distribution – 45% on the front axle and 55% on the rear – ensures outstanding traction and safe work on every terrain.
Safety firstMaximum operator safety thanks to stable folding rollover bar, integrated safety switch in the driver seat, and emergency stop foot pedal. Lashing points on the device enable safer transport.
Easy maintenanceFlails and drive belt are easily replaced via appropriate service cut-outs and openings. Fast access to all maintenance points.

Product details

Optimal ergonomics

Upright sitting position, ideal steering-wheel placement and legroom for operators up to 6'6" tall. Lateral deflectors protect the operator from thick growth and thorns. Bucket seat with newly-developed seat suspension.

Comfortable drive

Variable hydrostatic drive with one-hand drive lever, cruise control and integrated parking brake for fatigue-free work.

Excellent traction

Permanent 4WD drive with on-demand limited slip differential for the rear axle. Low pressure tyres with aggressive tread and AS-Motor tyre sealant (flat-stop).

Surfing flail mower deck

The flail mower unit’s surfing suspension yields upward on uneven terrain. Easy height adjustment through spring support.

Technical Data

limited-slip differential
automatic parking brake
closed mower deck
surfing mower deck

Accessories

Steering wheel knob

Optional for level terrain.

Applications

Commercial landscaping

Performance on rough terrain, perfect cutting results and high efficiency are advantages AS-Motor machines provide to professional service providers.

Gardening and landscaping

AS-Motor’s professional technology offers solutions for the diverse tasks of gardening and landscaping, from outdoor facilities to private gardens, public parks and residential lawns.

Municipal maintenance

Caring for green areas in the civic environment involves a variety of tasks. From parks to roadside management, AS-Motor provides the correct tools to ensure both professional results and operator safety.

Equestrian businesses

Equestrian areas require various forms of green care. Whether maintaining paddocks or lawns, AS-Motor offers tools to create the ideal equestrian environment.

Solar parks

Efficiency is crucial to maintaining a profitable solar park. AS-Motor offers the ideal tools to properly maintain the green areas around and under solar panels.

Athletic facilities and golf courses

Management of edge areas, embankments and lawns of athletic facilities are as important as the greens themselves.

Road maintenance

Maintaining roadways often involves mowing high grass and slopes, two specialties of AS-Motor’s professional technology.

Meadow orchards

Meadow orchards characterize the landscape of diverse regions and provide valuable ecosystems for insect and bird life. Maintaining these areas often involves mowing around trees, on slopes and in rough terrain.

Utilities

AS-Motor offers professional technology for the maintenance of green spaces in and around public utility facilities.

Viticulture

Viticulture, or wine-growing, is one of civilization's oldest forms of agriculture. AS-Motor was founded 60 years ago with the objective of tackling the slopes and thick growth of vineyards.
