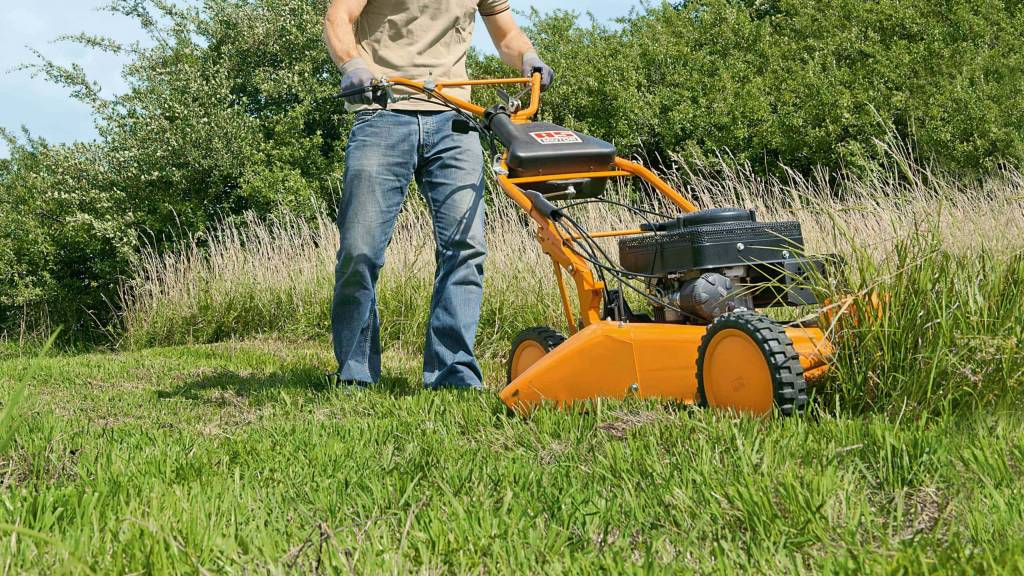

AS 53 2T ES 4WD RB

All-wheel drive and reverse gear for steep slopes

Equipped with the world’s only 2-stroke engine that meets the requirements stipulated by the EU Emissions Directive 97/68/EC, the AS 53 2T ES 4WD RB can mow safely on inclines of 45 degrees and more. In addition, the AS 2-stroke engine is factory-equipped with an EasyStart function; the CDI digital ignition system cuts the rpms required to start in half. The 2-stroke engine’s high torque provides full power in high, wet grass, while a third crankshaft bearing, safety blade carrier and friction discs on the wing blade protect the engine in the event of unseen obstacles.
All-wheel drive delivers propulsion even in extreme conditions such as slopes and uneven, hilly terrain.
The AS 53 2T ES 4WD RB has excellent grip thanks to large, aggressive tread drive wheels. The brake provides support on extreme slopes and can also be used as a parking brake.
Drive speed can be conveniently adjusted to suit the conditions using the variator, and the AS 53 2T ES 4WD RB comes with a reverse gear. Cutting heights can be adjusted from 30–100 mm via six levels on each axle. Work rates reaching 2,500 m² per hour are possible due to a powerful 2-stroke engine with up to 6.0 hp and a 53 cm cutting width. The AS 53 2T ES 4WD RB easily cuts grass up to 40 cm high.

Product advantages

Engine suitable for slopes

The world's only AS 2-stroke engine with EasyStart has position-independent lubrication, ensuring safe operation even on steep slopes.

Mobile through all-wheel drive (AS 53)

With all-wheel drive, rear-wheel brake and reverse gear ideal for ditches, hills, embankments or slopes. In addition, the all-wheel drive ensures a constant downhill speed and increased safety on steep slopes.

Blade shaft bearing arrangement protects the engine

Third crankshaft bearing and friction discs on the mulching blade ensure optimal engine protection.

Variator with reverse gear

The variable speed adjustment allows optimal performance in all work conditions. In addition the device is equipped with a reverse gear.

Product details

Cutting height adjustment

6-fache, achsweise Höhenverstellung.

Rear wheel brake

Parking and safety brake for safe work in all situations.

Guide bar

Folding and laterally adjustable guide bar.

5-litre tank

High-capacity 5-litre tank for long work intervals before refueling.

Technical Data

cutting width 53 cm
maximum grass height 40 cm
engine manufacturer AS-Motor
engine designation AS 165 ES
engine, 4-stroke / 2-stroke /
maximum power 4,4/6,0 kW (hp)
rated power 3,4/4,6 kW (hp)
rated speed 2800 rpm
tank capacity 5 l
rear-wheel drive / AWD /
number of gears Vario
reverse gear
max. speed 4,8 km/h
automatic parking brake
limited-slip differential
brake
blade clutch
mulch function, standard / optional /
cutting height 30 - 100 mm
cutting height adjustment, central/per axle/per wheel / /
cutting height adjustment, number of levels 6
dimension L/W/H 178x82x99 cm
weight 68 kg

Accessories

Operating hour meter

Documentation of work hours.

Grass collection bag, side

To collect the cuttings.

Twin tyres AS 21, AS 26, AS 53, AS 53 4WD

Optional twin tyres for improved traction on slopes.

Plastic hand guard set

Effective protection against brambles and thorns.

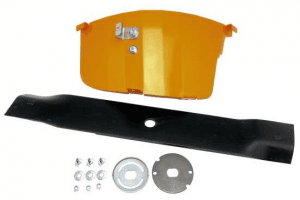

Mulch kit AS 53

Closure of the side discharge delivers perfect mulching results.

Applications

Commercial landscaping

Performance on rough terrain, perfect cutting results and high efficiency are advantages AS-Motor machines provide to professional service providers.

Gardening and landscaping

AS-Motor’s professional technology offers solutions for the diverse tasks of gardening and landscaping, from outdoor facilities to private gardens, public parks and residential lawns.

Municipal maintenance

Caring for green areas in the civic environment involves a variety of tasks. From parks to roadside management, AS-Motor provides the correct tools to ensure both professional results and operator safety.

Road maintenance

Maintaining roadways often involves mowing high grass and slopes, two specialties of AS-Motor’s professional technology.

Meadow orchards

Meadow orchards characterize the landscape of diverse regions and provide valuable ecosystems for insect and bird life. Maintaining these areas often involves mowing around trees, on slopes and in rough terrain.

Private customers

When the goal is perfecting an ornamental lawn, obtaining forage for small animals or tending to the gardens and orchards of weekend homes, AS-Motor offers several professional mowing tools that will provide private users with excellent results for many years to come.
