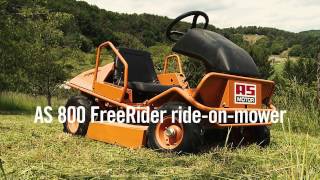

AS 800 FreeRider
Ride-on mower with limited slip differential for more traction
The AS 799 Rider’s big brother, the AS 800 FreeRider is equipped with a Briggs & Stratton Series 3 Intek engine with gear-reduction blade drive and up to 13.0 hp. With an AS cross-blade system and closed mowing deck, the AS 800 FreeRider cuts and mulches grass up to 80 cm high. The grass is then placed between the wheels and not run over, ensuring greater safety in wet conditions and on slopes. The cutting height can be adjusted to 4 levels between 35–85 mm. Hydrostatic transmission allows the precise adaptation of speed to match the terrain, reaching 8.0 km/h and 6.0 km/h in reverse while a limited slip differential can be switched on via a foot pedal. When in park, the mowing unit switches off automatically via a mechanical blade clutch.
The AS 800 FreeRider’s tubular frame ensures high stability; a bumper protects the axles and wheel suspension. A length-adjustable bucket seat provides a comfortable upright sitting position and ample legroom while a smooth steering system guarantees fatigue-free work.
Work rates up to 6,800 m² per hour are possible thanks to an 80 cm cutting height, powerful engine and hydrostatic transmission. A 15-litre tank means longer work periods without refueling. The AS 800 FreeRider is suited for both flat and uneven terrain and slight slopes.
Effortlessly mow grass up to 80 cm high with the gear-reduction blade drive.
Field stud tyres, switchable limited slip differential and an engine suitable for slopes ensure powerful traction on difficult terrain.
High stability and torsional rigidity with heavy load.
Low centre of gravity and extended sitting position provide comfort and safety for tall operators.
Easy adaptation of the speed to every terrain with integrated, mechanical parking brake in the drive lever.
AS mulching mower deck
Closed bearing-supported mower deck with AS cross-blade system. The main blade cuts high grass, the cross-blade shreds the cuttings.
Comfortable sitting position, while a low centre of gravity and side deflectors provide additional safety.
Switchable limited slip differential
Convenient activation of limited slip differential via a foot pedal.
Four-level, central cutting height adjustment with automatic blade stop in transport position.
Seat Suspension Kit (AS 915)
Seat suspension with improved progressive suspension, reinforced gas pressure damper and new end stop. Adjustable from 60-120 kg.
Tread suited for use on lawns.
Cargo area: L = 1071 mm, W = 607 mm, panel height: 274 mm. Permissible total weight: 100 kg. Rear panel can be removed.
Trailer hitch Sherpa
To connect the AS trailer.
Width: 1107 mm, height: 348 mm. Pivots on both sides.
Cross-track chain for the drive wheels.
Maintaining horse pastures is a pleasure with the AS 800 FreeRider, even close to fences! You can work very well on slopes thanks to its low centre of gravity.
This machine convinced me already during the 1st mowing operation, so that I do not shed a tear for our former tractor with attached mulch mower. Efficient, manoeuvrable, powerful and a excellent mowing result characterise my new AS 800 FreeRider; and on top of that it takes up very little space in the tool shed when not in use.
In addition to my new AS 800 ride-on mower, we own an AS 28 2T ES for several years now, with which we are also very satisfied. My father swears to it. It is used on steep sections and on embankments/ditches. I bought the machine at Hagenlocher in Hbg-Gültstein - Hagelocher is always a competent and trustworthy dealer, also when it comes to service works.
My conclusion: "If there were such great, well thought-out and reliable products for all live situations as AS motorised equipment, the world would be simply perfect!
Well, we had nothing to do with 1 metre high grass before we bought our AS-Motor machine. We made our experiences in our wilderness with thistles, bramble hedge, young trees with 8 cm diameter: we simply drove through...and the stuff was flat !!!! Far above your practical test. Yes, that is Swabian quality! We know what the machine can do and we won't give it away again, our little "Ferrari"AS 800 FreeRider, Best regards from the Dieterle family, Allgau region
