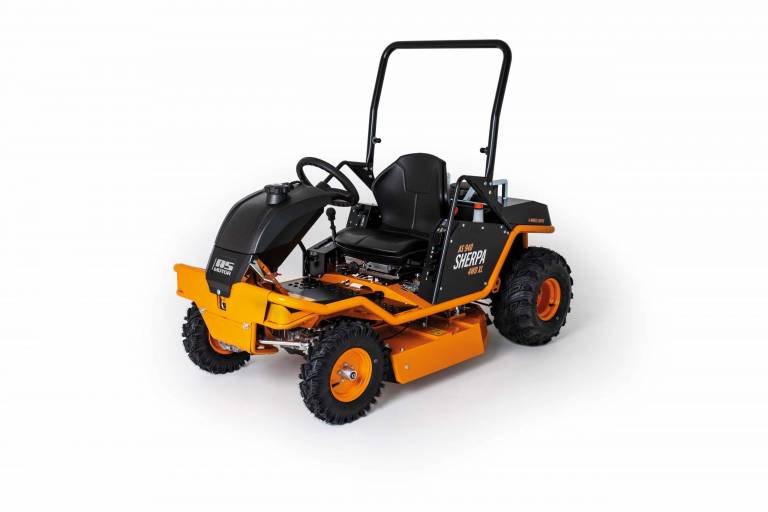

AS 940 Sherpa 4WD XL

90 cm
20,1/27,0 kW (hp)

Categories

High-grass, ride-on mower with permanent all-wheel drive and more ground clearance

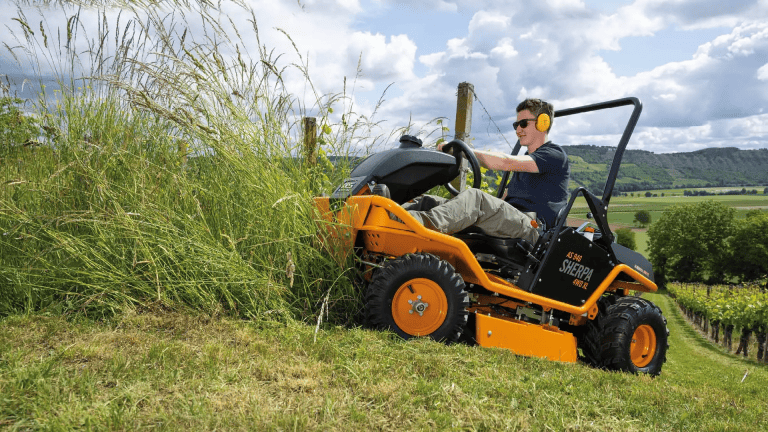

The AS 940 Sherpa 4WD XL enables comfortable and safe mowing on slopes thanks to its Briggs & Stratton 2-cylinder engine with 724 ccm, 27 hp, and oil and fuel pump. Its extremely low centre of gravity, permanent all-wheel drive and XL tyres with field stud tread provide excellent stability on slopes up to 21 degrees. Hydrostatic transmission allows the precise adaptation of speed to match the terrain, reaching 6.7 km/h and 6.5 km/h in reverse. Just one lever controls the drive, brake and parking functions for easy operation, while limited slip differential can be activated for excellent propulsion and traction in extreme situations. A brake pedal returns the drive lever to neutral and automatically engages the parking brake.The AS 940 Sherpa 4WD XL’s surfing mower deck is equipped with AS cross-blade technology in which bearing-supported blades cut the grass, while a mulching blade positioned above them shreds the cuttings. The mulched grass is then deposited between the wheels for added safety on slopes and wet grass, while the mower deck’s surfing suspension yields upwards to obstacles, protecting the blades and turf from damage. With a 90 cm cutting width, the AS Sherpa 940 4WD XL achieves work rates reaching 5,500 m² per hour. Cutting heights can be adjusted to 5 levels from 80–135 cm and an optional mulch kit is available for even finer mulching results.

Maximum comfort for long work days

The AS 940 Sherpa 4WD XL performs even under harsh conditions thanks to its highly stable tubular frame. A length-adjustable seat and seat spring package mean operators up to 2 meters tall can operate the machine comfortably while a low centre of gravity, folding rollover bar and branch deflectors are added safety features. Integrated lashing points enable secure transport.

Designed for continuous operation

Two separate ventilation circuits for the engine and hydrostatic transmission prevent overheating: the engine takes in air from above and discharges it to the side, while the hydrostatic transmission takes air from the rear and discharges it downward. This system ensures a long service life.

Product advantages

All-wheel drive (AS 940)Permanent all-wheel drive ensures better traction uphill and stronger, safer braking downhill.
Surfing mulch-mower deckClosed mower deck with AS cross-blade system. The main blade cuts, the cross-blade chops the cuttings. The surfing mower deck gives way upward on uneven terrain to protect against damage.
Ergonomic sitting position provides excellent driving comfortLength-adjustable driver seat, innovative seat suspension and ergonomic sitting position provide comfort for tall operators during long work periods.
Stable tube frameHigh stability and torsional rigidity with heavy load.
Optimal all-terrain mobilityField stud tyres, switchable limited slip differential and an engine suitable for slopes ensure powerful traction on difficult terrain.
Variable hydrostatic transmission (ride-on mower)Easy adaptation of the speed to every terrain with integrated, mechanical parking brake in the drive lever.
Stable, rollover barGreater operator safety in the machine's limit area.

Product details

AS mulching mower deck

Closed, surfing mower deck with cross-blade system and bearing-supported blades that yield to obstacles.

Separate air cooling supply

Separate engine air cooling and hydrostatic transmission optimize performance.

Switchable limited slip differential

Comfortable activation of the limited slip differential via foot pedal for excellent propulsion and traction.

XL tyres

XL tyres for 30 mm additional ground clearance.

Technical Data

cutting width 90 cm
engine manufacturer B&S
engine designation Professional Series 8
4-stroke engine, 1-cyl. / 2-cyl. /
displacement 724 cm³
maximum power 20,1/27,0 kW (hp)
rated power 16,5/22,4 kW (hp)
rated speed 3300 rpm
drive, 2WD rear / 4WD permanent /
drive, variable hydrostatic transmission
max. speed 6,7 km/h
limited-slip differential
automatic parking brake
mono-blade / cross-blade / Y-flails / /
side discharge / rear discharge /
closed mower deck
surfing mower deck
cutting height 80 - 135 mm
tank capacity 15 l
seat spring package, standard / optional /
dimension L/W/H 191x106x156 cm
weight 298 kg

Accessories

Trailer

Cargo area: L = 1071 mm, W = 607 mm, panel height: 274 mm. Permissible total weight: 100 kg. Rear panel can be removed.

Trailer hitch

To connect the AS trailer.

Snow blade

Width: 1107 mm, height: 348 mm. Pivots on both sides.

Mulch kit – AS Sherpa

For even finer mulching and more uniform cutting results on lawns with grass up to 40 cm high.

Weatherproof cab

Weather protection for adverse conditions.

Applications

Gardening and landscaping

AS-Motor’s professional technology offers solutions for the diverse tasks of gardening and landscaping, from outdoor facilities to private gardens, public parks and residential lawns.

Commercial landscaping

Performance on rough terrain, perfect cutting results and high efficiency are advantages AS-Motor machines provide to professional service providers.

Meadow orchards

Meadow orchards characterize the landscape of diverse regions and provide valuable ecosystems for insect and bird life. Maintaining these areas often involves mowing around trees, on slopes and in rough terrain.

Municipal maintenance

Caring for green areas in the civic environment involves a variety of tasks. From parks to roadside management, AS-Motor provides the correct tools to ensure both professional results and operator safety.

Utilities

AS-Motor offers professional technology for the maintenance of green spaces in and around public utility facilities.

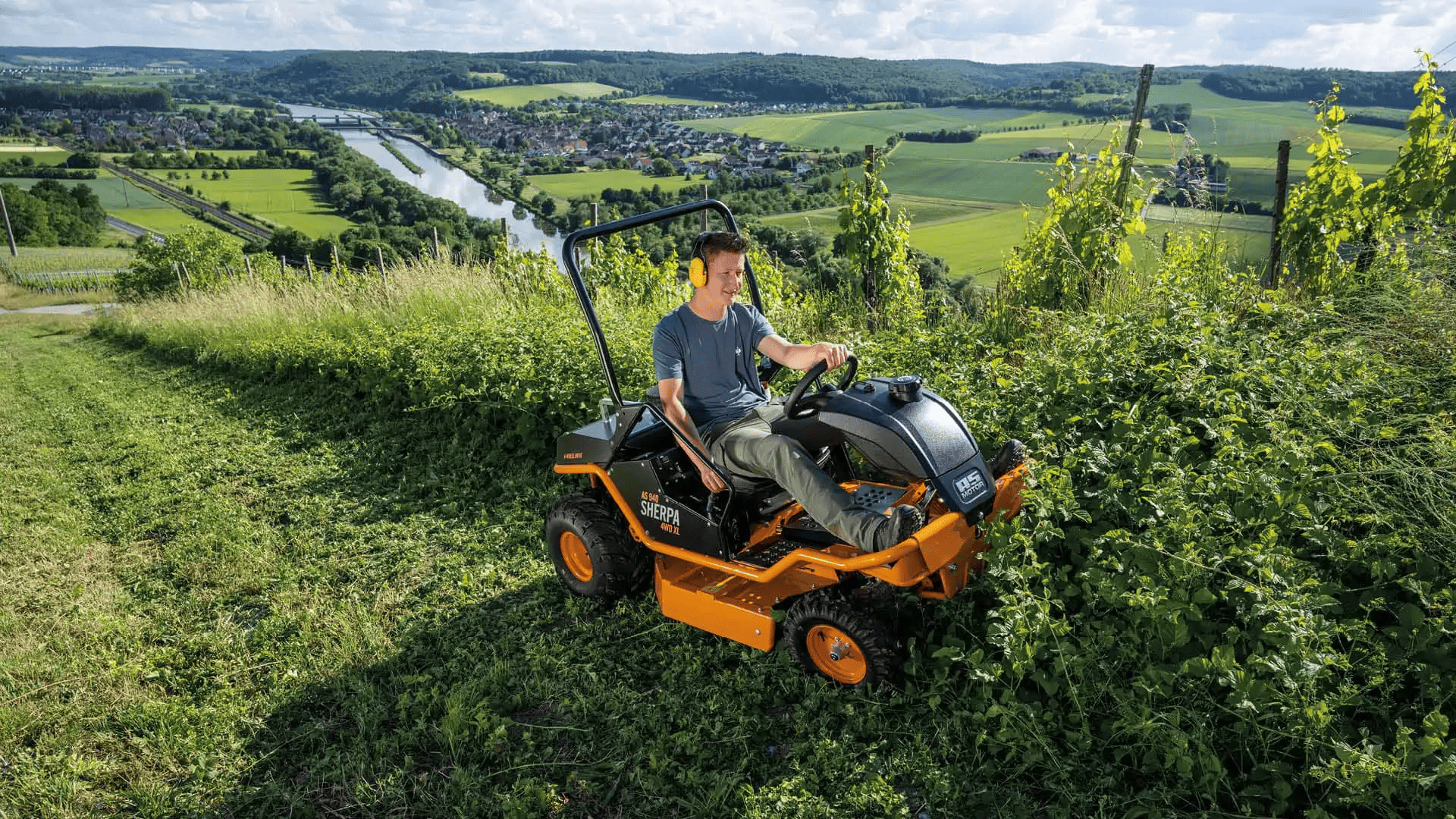

Viticulture
