AS 920 Sherpa 2WD

90 cm
20,1/27,0 kW (hp)

Categories

Fast and agile ride-on mower with limited slip differential for moderate inclines

The AS 920 Sherpa 2WD boasts work rates reaching 9,450 m² per hour, thanks to its 90 cm cutting width and a high-power Briggs & Stratton 2-cylinder engine with 724 ccm displacement and up to 27 hp. The closed, surfing mower deck gives way upward which protects both the blade and the turf, as the blade will not come into contact with the ground. Moreover, the shape of the mower deck allows flush, close-to-the-edge mowing. The AS 920 Sherpa 2WD has a turning radius of just 65 cm.The AS 920 Sherpa 2WD’s cross-blade system delivers impressive mulching results in grass and dense growth up to 1.3 meters high. Bearing-supported blades cut the grass while a mulching blade positioned above them shreds the cuttings, which are then deposited between the wheels for added safety on slopes and wet grass. Cutting heights can be adjusted to 5 levels from 35–135 cm with an optional mulch kit available for even finer mulching results.

Convenient drive operation with added safety

Hydrostatic transmission allows the precise adaptation of speed to match the terrain, reaching 10.5 km/h and 8.2 km/h in reverse. Just one lever controls the drive, brake and parking functions for easy operation, while limited slip differential can be activated for excellent propulsion and traction when needed.

Comfort meets stability

With a highly stable tubular frame, the AS 920 Sherpa 2WD performs even under harsh conditions. Operators up to 2 meters tall can operate the machine comfortably thanks to a length-adjustable seat and seat spring package. A low centre of gravity, folding rollover bar and branch deflectors are added safety features, while lashing points integrated in the frame enable secure transport.

Designed for continuous operation

Two separate ventilation circuits for the engine and hydrostatic transmission prevent overheating: the engine takes in air from above and discharges it to the side, while the hydrostatic transmission takes air from the rear and discharges it downward. This system ensures a long service life.

Product advantages

Surfing mulch-mower deckClosed mower deck with AS cross-blade system. The main blade cuts, the cross-blade chops the cuttings. The surfing mower deck gives way upward on uneven terrain to protect against damage.
Ergonomic sitting position provides excellent driving comfortLength-adjustable driver seat, innovative seat suspension and ergonomic sitting position provide comfort for tall operators during long work periods.
Small turning radius, high work rateThe turning radius of just 60 cm provides agility even on difficult terrain.
Stable tube frameHigh stability and torsional rigidity with heavy load.
Terrain with moderate inclinesPerforms on moderate inclines thanks to a low weight and low centre of gravity.
Variable hydrostatic transmission (ride-on mower)Easy adaptation of the speed to every terrain with integrated, mechanical parking brake in the drive lever.
Stable, rollover barGreater operator safety in the machine's limit area.

Product details

AS mulching mower deck

Closed, surfing mower deck with cross-blade system and bearing-supported blades that yield to obstacles.

Separate air cooling supply

Separate engine air cooling and hydrostatic transmission optimize performance.

Switchable limited slip differential

Comfortable activation of the limited slip differential via foot pedal for excellent propulsion and traction.

Stable, folding rollover bar

Greater operator safety in the machine’s limit area.

Technical Data

cutting width 90 cm
engine manufacturer B&S
engine designation Professional Series 8
4-stroke engine, 1-cyl. / 2-cyl. /
displacement 724 cm³
maximum power 20,1/27,0 kW (hp)
rated power 16,5/22,4 kW (hp)
rated speed 3300 rpm
drive, 2WD rear / 4WD permanent /
drive, variable hydrostatic transmission
max. speed 10,5 km/h
limited-slip differential
automatic parking brake
mono-blade / cross-blade / Y-flails / /
side discharge / rear discharge /
closed mower deck
surfing mower deck
cutting height 50 - 105 mm
tank capacity 15 l
seat spring package, standard / optional /
dimension L/W/H 191x98x152 cm
weight 280 kg

Accessories

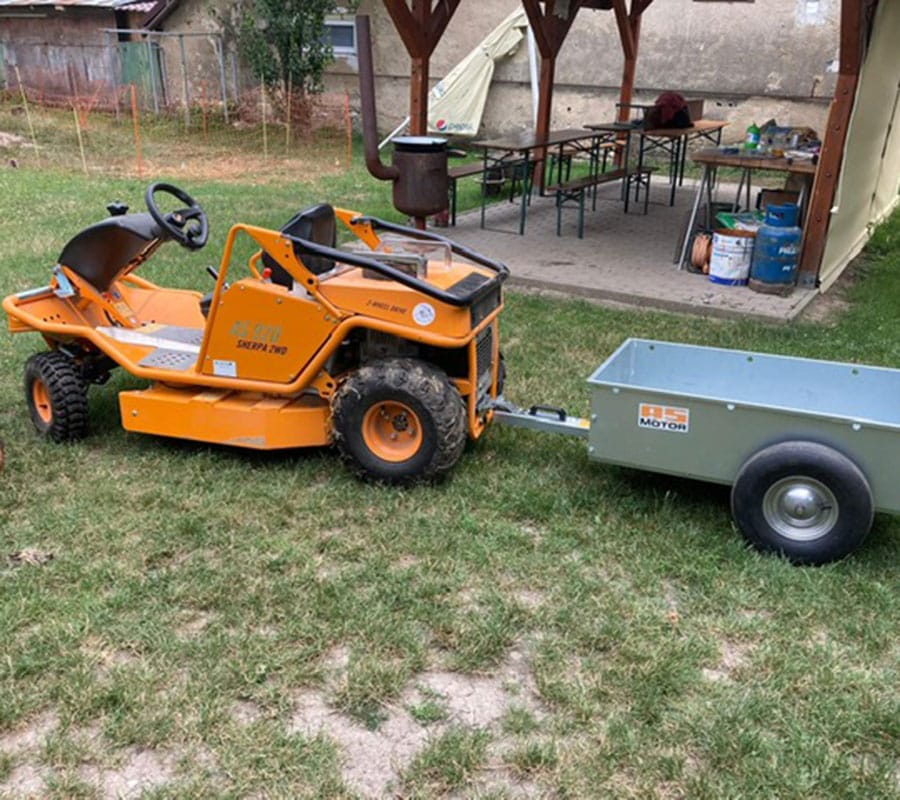

Trailer

Cargo area: L = 1071 mm, W = 607 mm, panel height: 274 mm. Permissible total weight: 100 kg. Rear panel can be removed.

Trailer hitch

To connect the AS trailer.

Snow blade

Width: 1107 mm, height: 348 mm. Pivots on both sides.

Mulch kit – AS Sherpa

For even finer mulching and more uniform cutting results on lawns with grass up to 40 cm high.

Snow chains

Cross-track chain for the drive wheels.

Weatherproof cab

Weather protection for adverse conditions.

Applications

Commercial landscaping

Performance on rough terrain, perfect cutting results and high efficiency are advantages AS-Motor machines provide to professional service providers.

Solar parks

Efficiency is crucial to maintaining a profitable solar park. AS-Motor offers the ideal tools to properly maintain the green areas around and under solar panels.

Gardening and landscaping

AS-Motor’s professional technology offers solutions for the diverse tasks of gardening and landscaping, from outdoor facilities to private gardens, public parks and residential lawns.

Private customers

When the goal is perfecting an ornamental lawn, obtaining forage for small animals or tending to the gardens and orchards of weekend homes, AS-Motor offers several professional mowing tools that will provide private users with excellent results for many years to come.

Meadow orchards

Meadow orchards characterize the landscape of diverse regions and provide valuable ecosystems for insect and bird life. Maintaining these areas often involves mowing around trees, on slopes and in rough terrain.

Municipal maintenance

Caring for green areas in the civic environment involves a variety of tasks. From parks to roadside management, AS-Motor provides the correct tools to ensure both professional results and operator safety.
